Many folks out there have built models of their favourite Russels, and here we present a few...


Joe Fossey and Roger Hauka produced several Ville class models, 40" in length.

R/C Ville Class Models

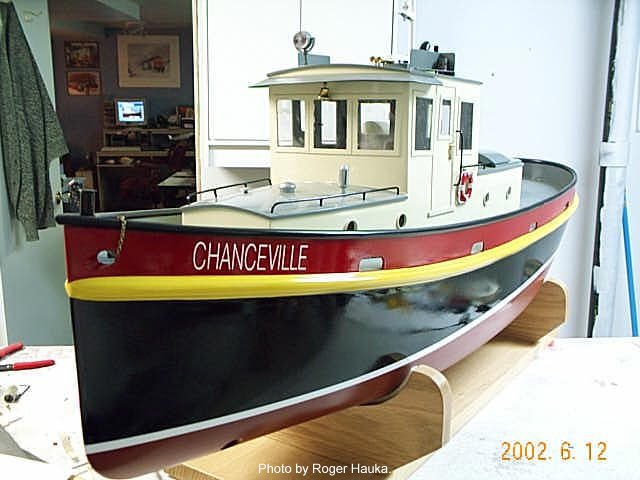

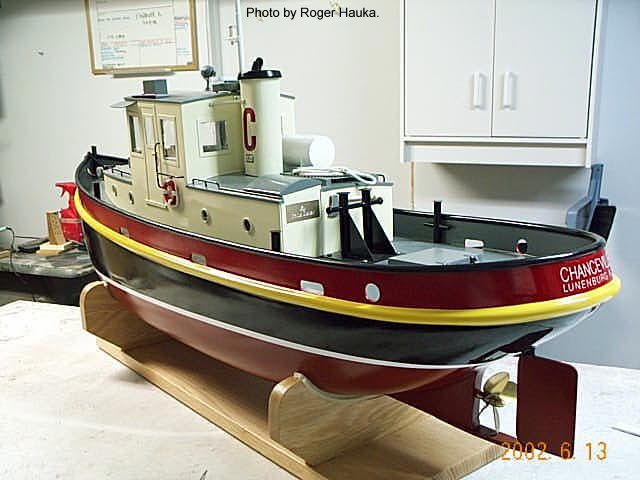

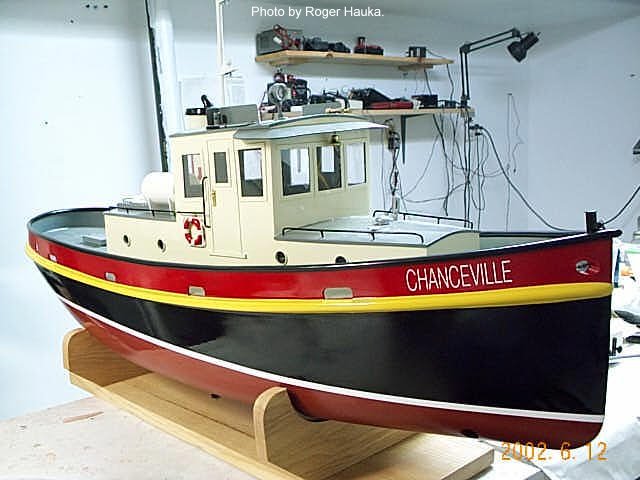

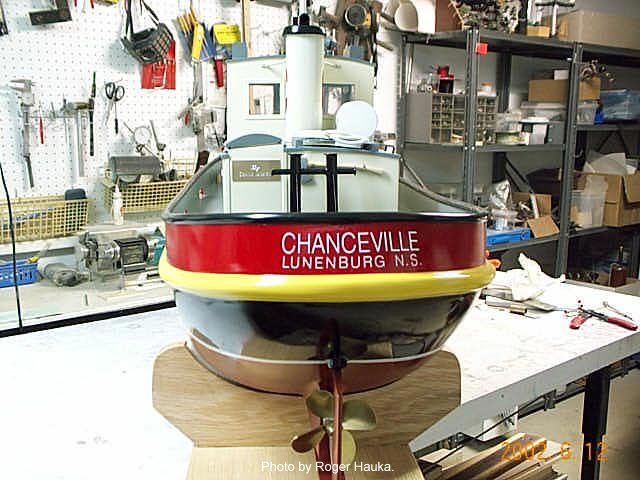

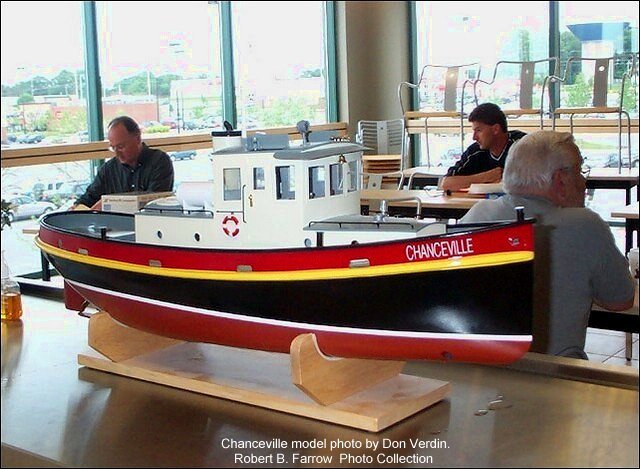

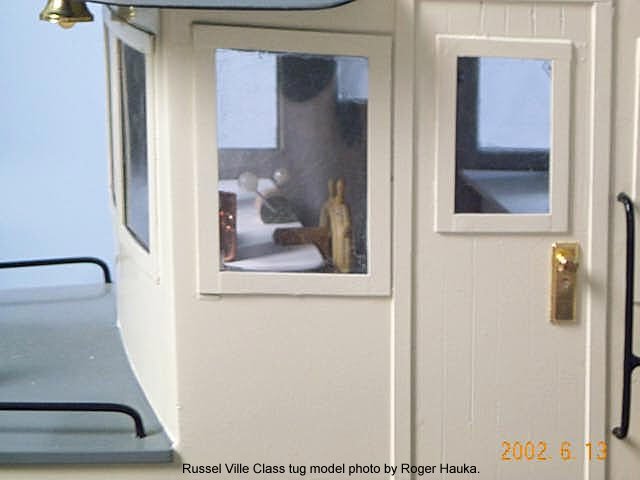

Joe Fossey notes: This model (Chanceville) was built for Barrie Model Yacht Club member Tim Chance by fellow B.M.Y.C. member Roger Hauka who is a professional model builder under name of Scale Design in Barrie. After I designed and made the fibreglass molds to produce my original Joe Fossey built "Fossville" model, Roger obtained 2 orders from mutual friends Paul Groves of Snug Harbour ON. for the "Groverville" and from Tim Chance of Lunenburg N.S. for the "Chanceville". From old Russel Brothers drawings, I made the male plugs and then contracted a local fibreglass fabricator to make the female moulds and produce one model. Upon seeing the result of my model the "Fossville" two friends wanted one and commissioned Roger Hawka to make the "Chanceville" and "Groverville". Later Roger Hauka produced 3 for Dalhousie University that were custom equipped electronically for their Atlantic Whale monitoring program. At a later date 6 were made by the fabricator for a failed "Sail your own modelboat" enterprise at the Blue Mountain Ski Resort in Collingwood. These have all since been sold to various people including Steve Briggs. The Grand total produced is 12 units.

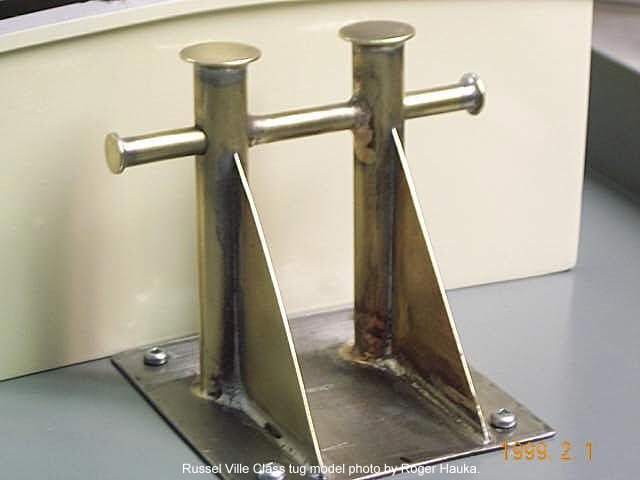

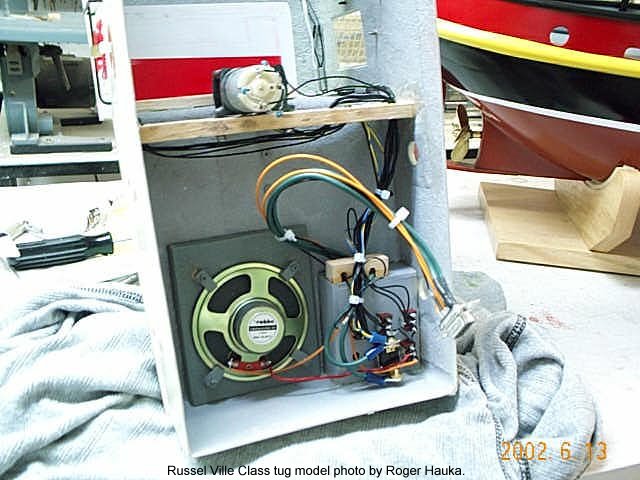

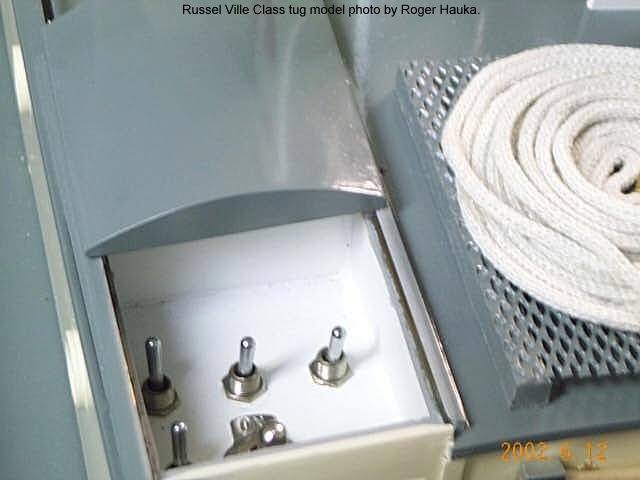

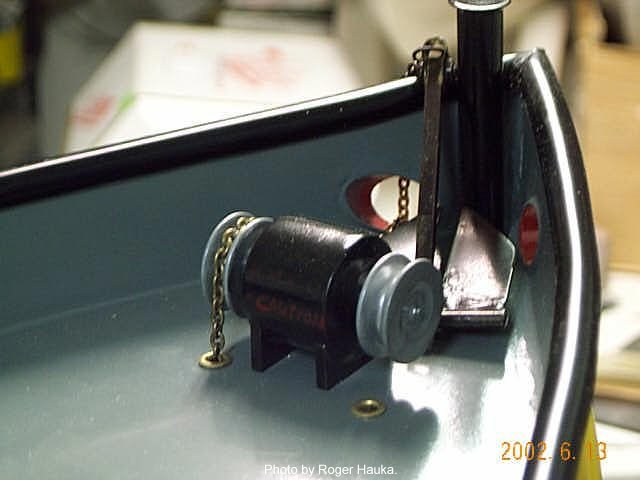

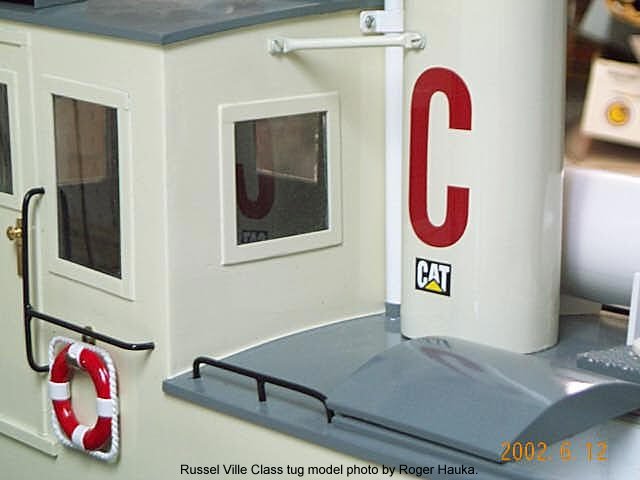

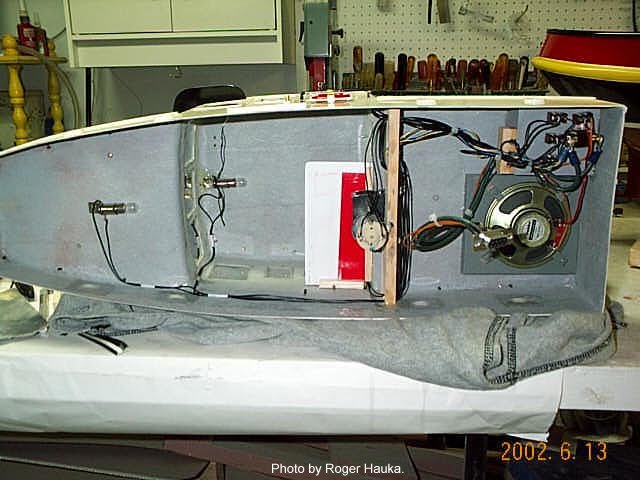

Roger Hauka notes: I have a collection of pics below for you to give an overview of the boats and the construction process. Missing from my collection is the Groverville, owned by Paul Groves of Snug Harbour. I lost a hard drive and his pics went with it. Most of these you see below were regathered from people I had sent them too so they are mostly small format. I took them all however.

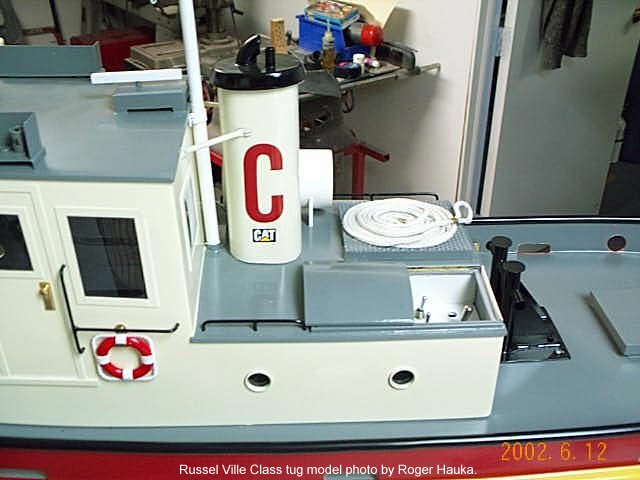

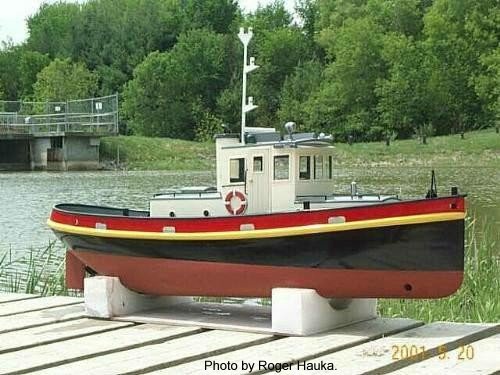

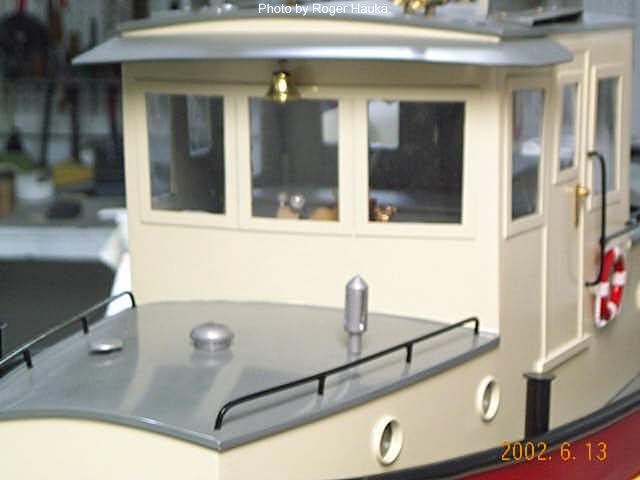

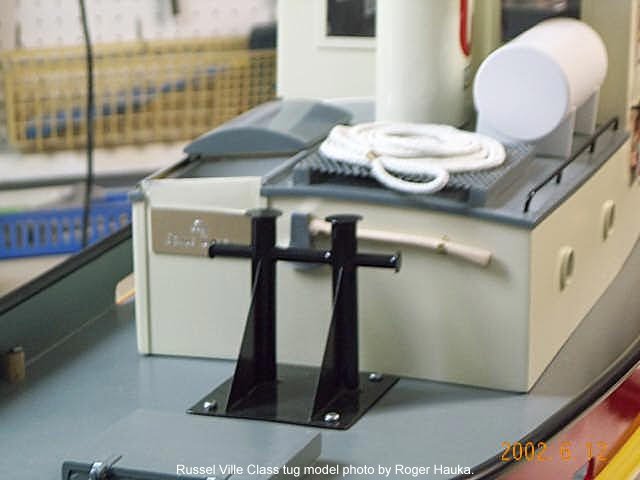

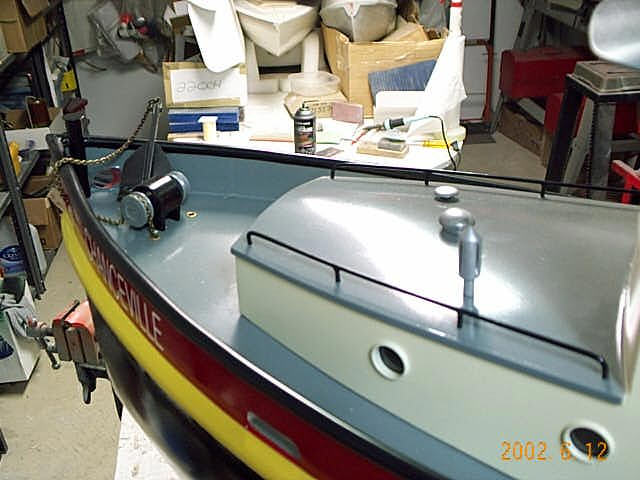

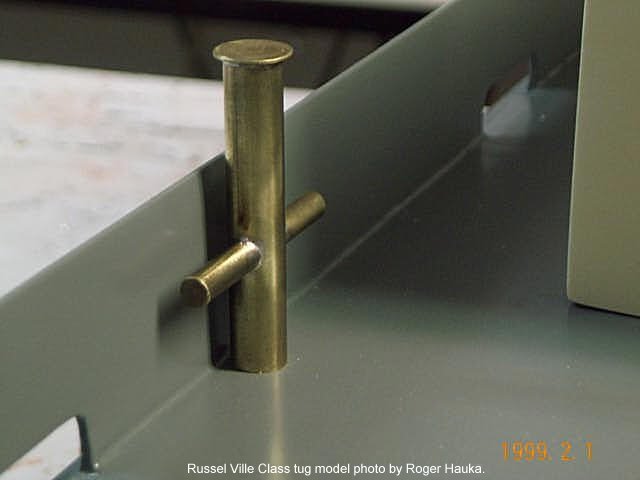

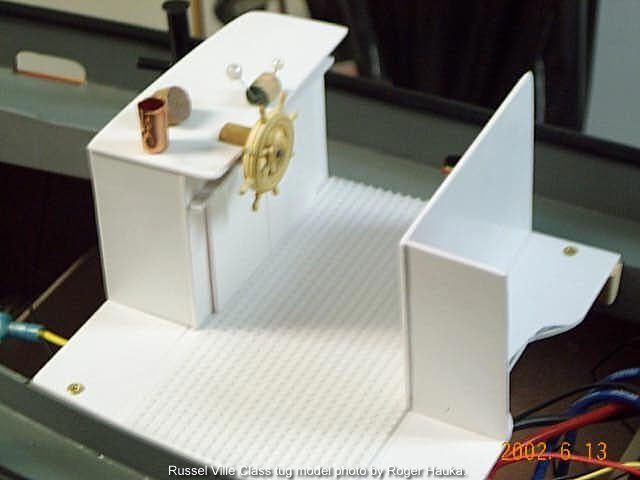

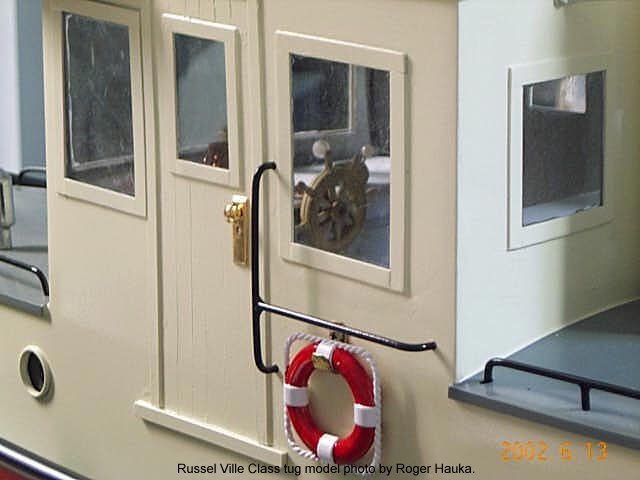

CHANCEVILLE PHOTOS - 1 in.=1ft. at 40 inches. 25 lbs. - CLICK TO ENLARGE



Whale Boats

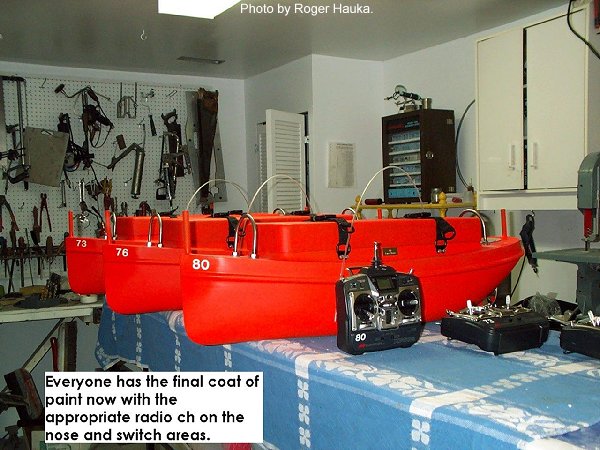

Joe Fossey notes: Roger Hauka has since made more of Russel models for Dalhousie University with a modified Great Lakes style "turtle-deck" house. These models equipped with special high tech Sonar sensing equipment were successfully used on their Atlantic Whale Tracking and Watching science programs.

600   1024   1760
600   1260
600   1260

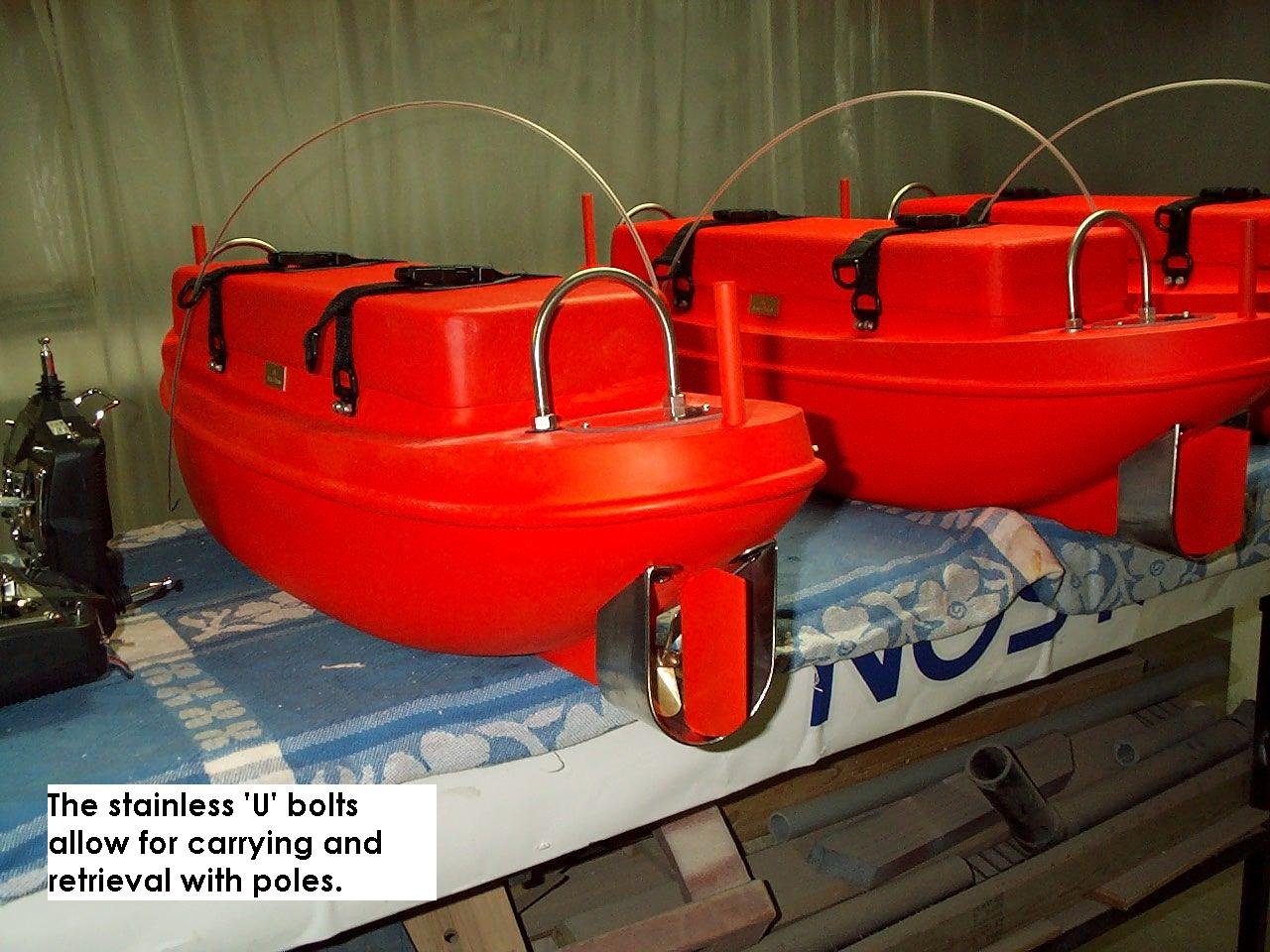

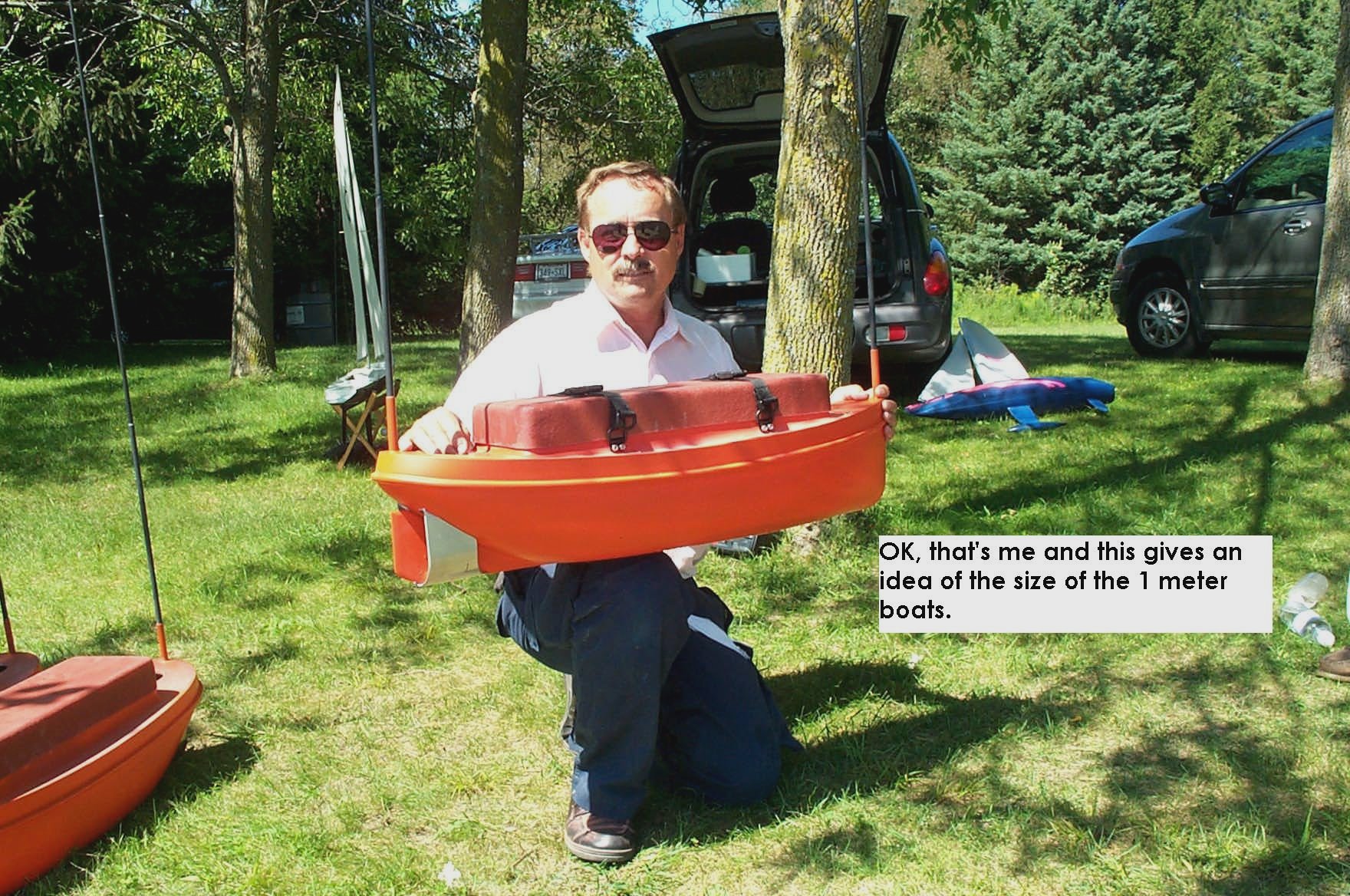

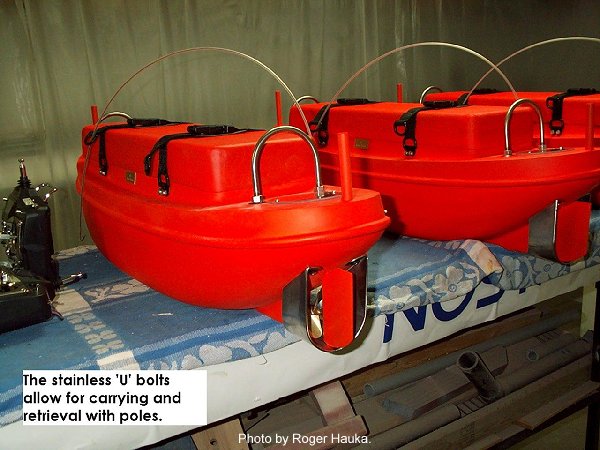

Roger Hauka notes: The Whale Boats used the basic Russel Bros 40 foot hull at 40 inches from the mold of Joe Fossey but the inside wall thickness was increased to over a 1/4 inch with unidirectional cloth and Kevlar. You could literally park a truck on one. The deck and hatch area was designed by me to be water tight yet provide instant access to a very large cargo area for the electronics and be strong enough to be abused by the whales, either in anger or play. My goal was to produce a boat that could take a slap of a tail, be driven 40 feet down and resurface with no more damage than broken ID masts. The prop and rudder were shrouded in a modified Kortz style nozzle of 1/8th stainless steel to reduce damage during recovery of the boats at sea, on to a rolling steel deck. Design requirements specified 2 knots for 7 hours duration (to keep up with moving pods of whales). This is quite fast for a model boat scaled to 1 12th it's size (that would be 24 knots in full size) My biggest problem was with cavitation at high thrust. Lowering the stern and modifying the shape of the Kortz shroud solved that. The boats follow a pod and the calls of the subjects are recovered by lowered hydro phones then relayed to the mother ship where it is all stored and deciphered by computer. Each boat is driven by a separate operator using high quality but conventional radio control equipment. The boats also have GPS on board to advise the central computer of their separate locations.


Other Models

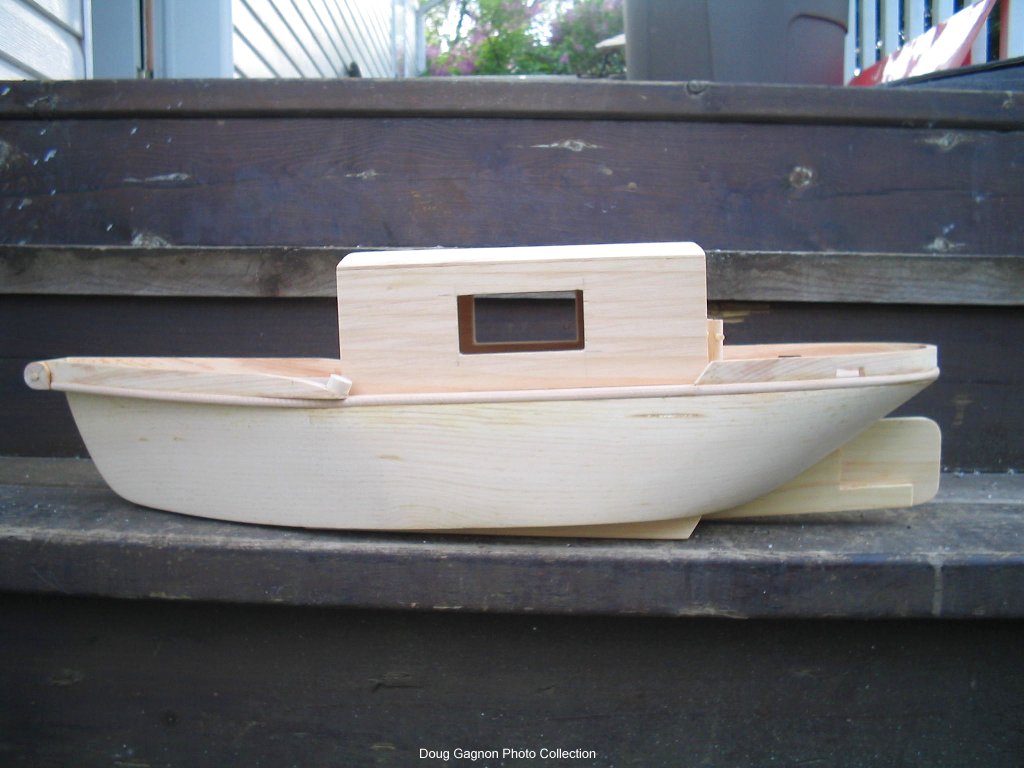

Ancaster   DOUG GAGNON
A model of the most famous 26' Winch Boat.
600 pixels wide   DG COLLECTION   1024 pixels wide
MODEL PAGE
Ancaster   DOUG GAGNON
600 pixels wide   DG COLLECTION   1024 pixels wide
MODEL PAGE
Atomic   JIM TURNER
For 20 more photos of this model see the bottom of the Atomic page.
600 pixels wide   1200 pixels wide
BOAT PAGE

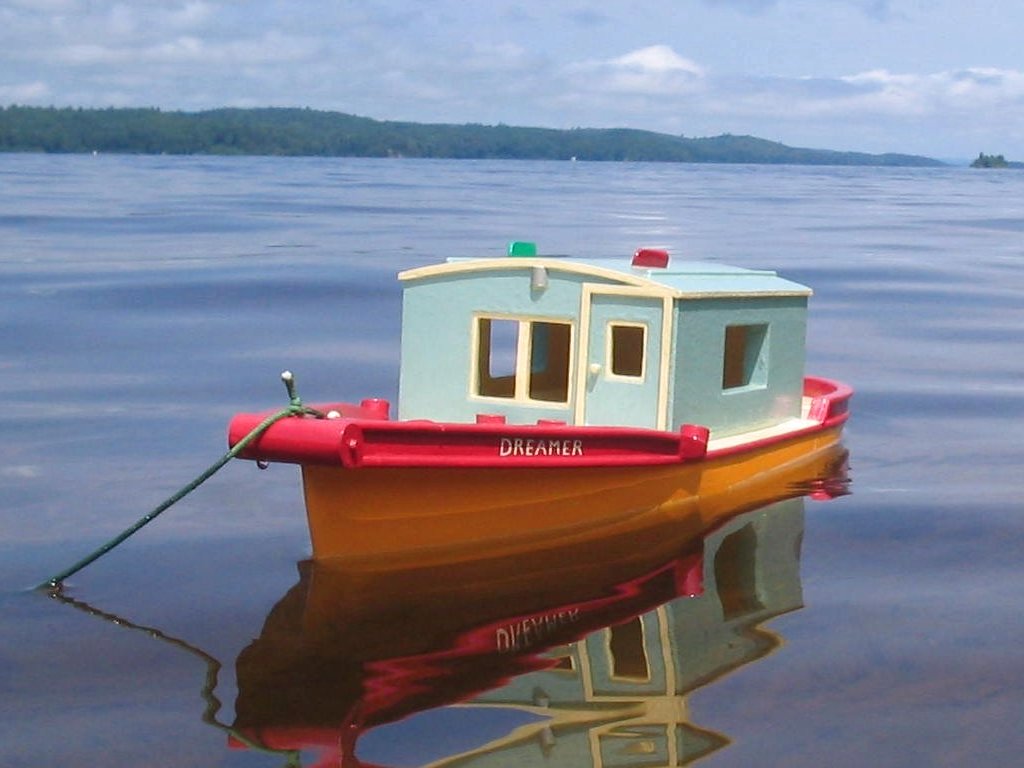

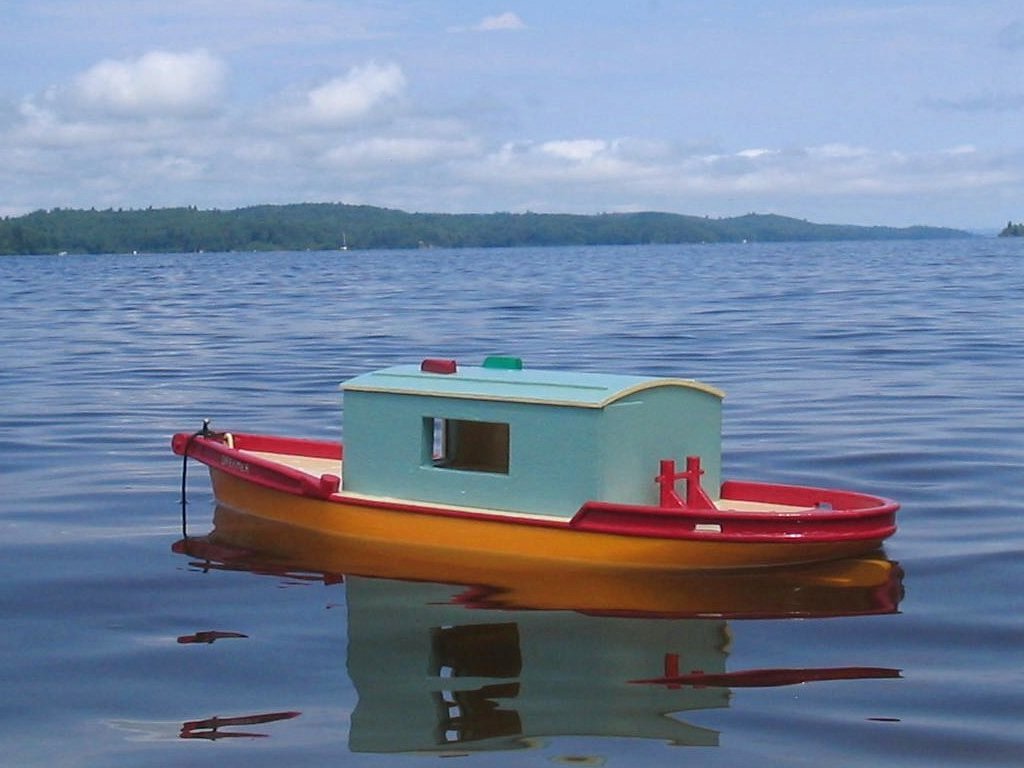

Dreamer   DOUG GAGNON
A twin of the Ancaster model, made for Doug's daughter.
600 pixels wide   DG COLLECTION   1024 pixels wide
MODEL PAGE
Dreamer   DOUG GAGNON
600 pixels wide   DG COLLECTION   1024 pixels wide
MODEL PAGE
Fossville   JOE FOSSEY
Joe originated the mold designs that let Roger Hauka mass produce Ville class 1/40th scale R/C Models.
1024 pixels wide
MODEL PAGE

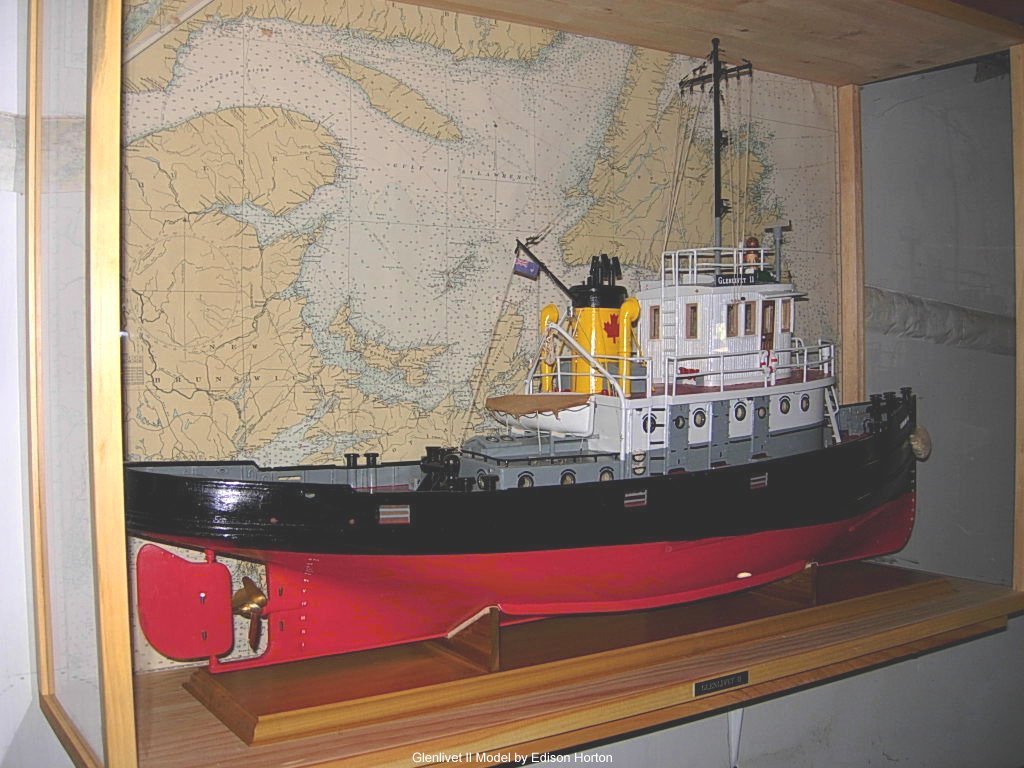

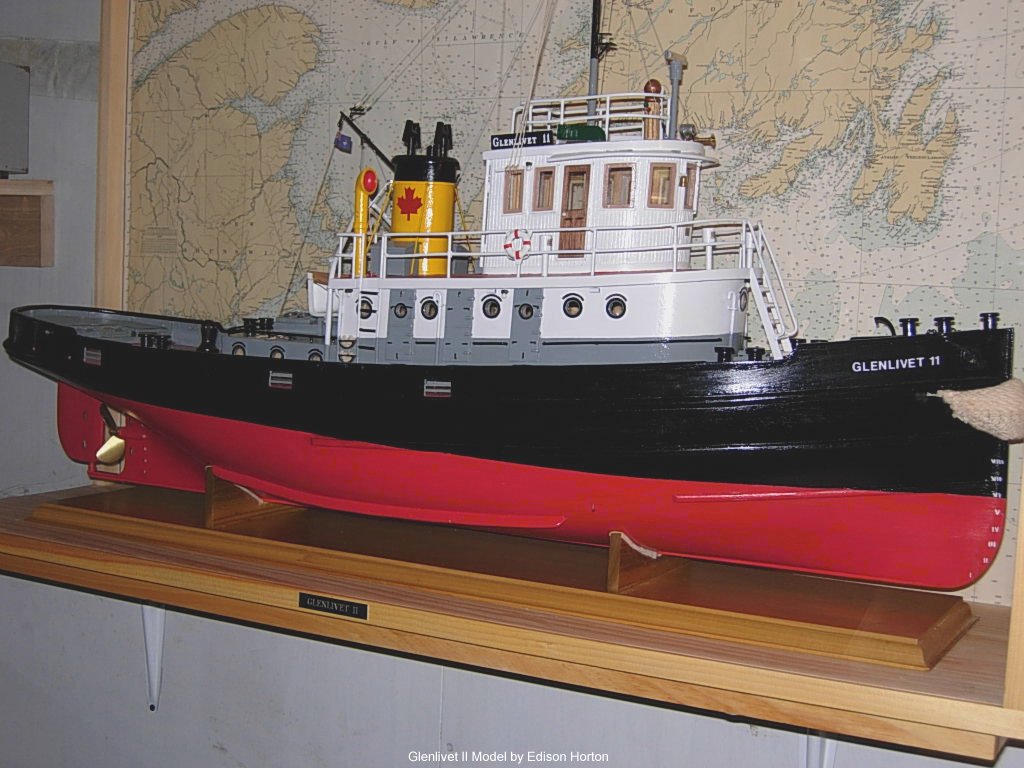

Glenlivet II   EDISON HORTON
Edison was engineer aboard Glenlivet II.
1024 pixels wide
CLICK FOR MODEL PAGE
MODEL PAGE
Glenlivet II   EDISON HORTON
Edison was engineer aboard Glenlivet II.
1024 pixels wide
CLICK FOR MODEL PAGE
MODEL PAGE

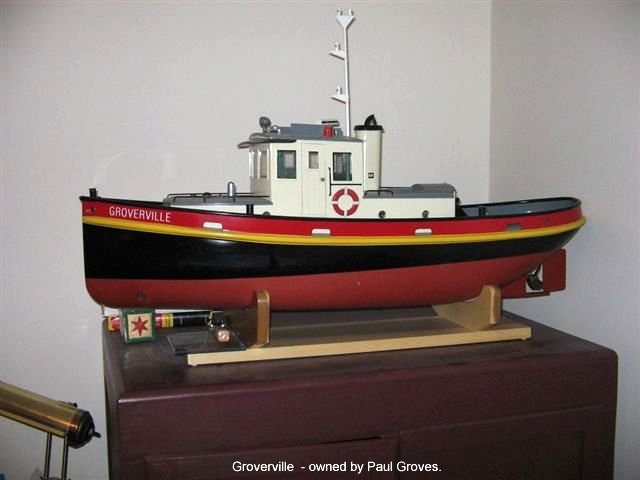

Groverville   PAUL GROVES
640 pixels wide

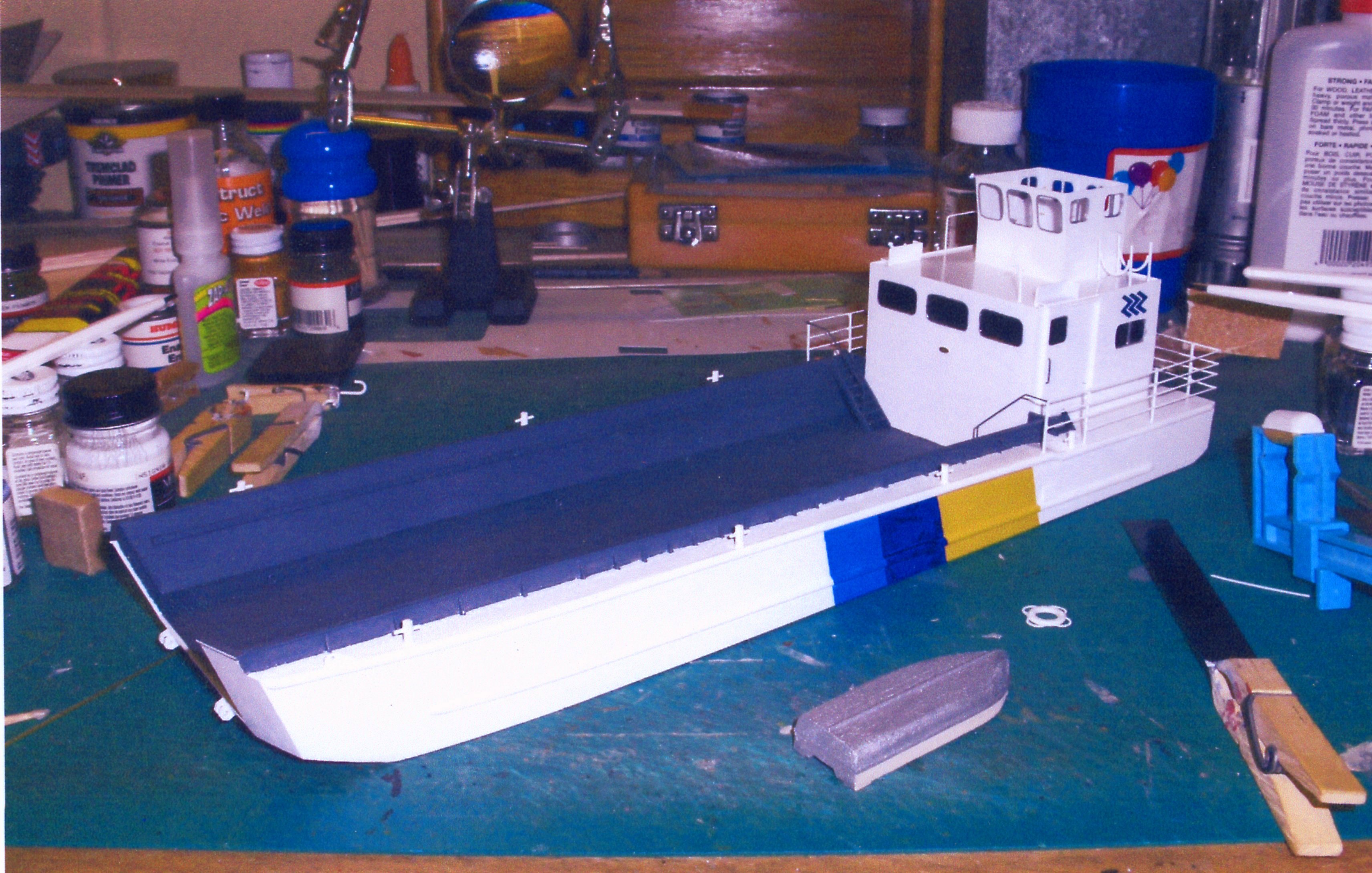

Manitou Island II   SHAUN VARY
1024 pixels wide   600 DPI SCAN
BOAT PAGE
Nancy A. Lee   SHAUN VARY

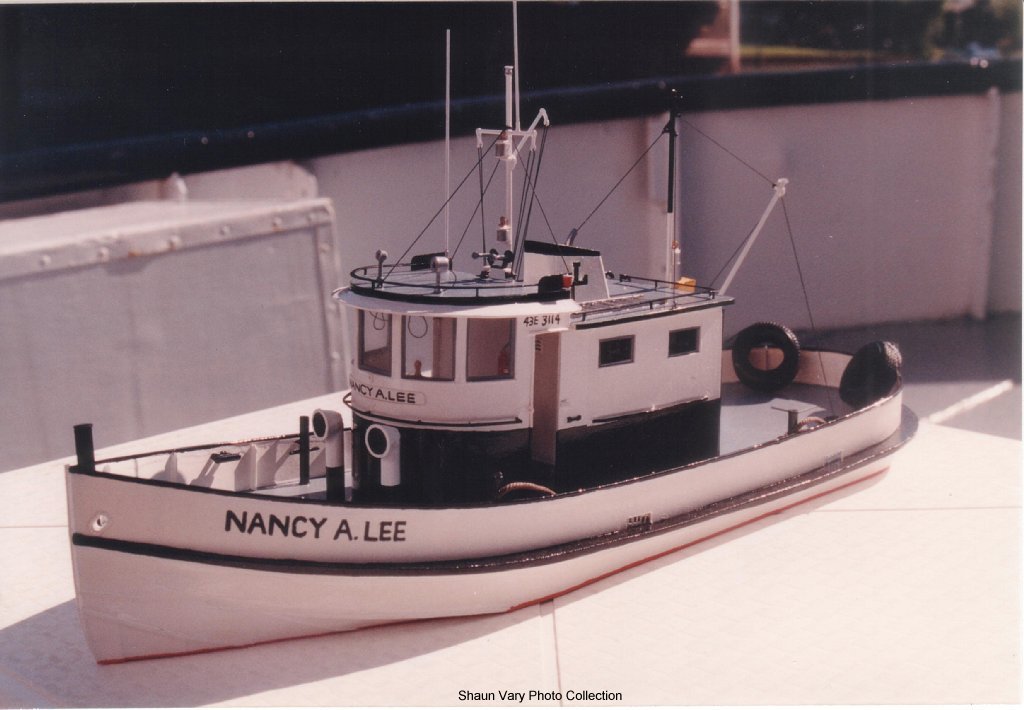

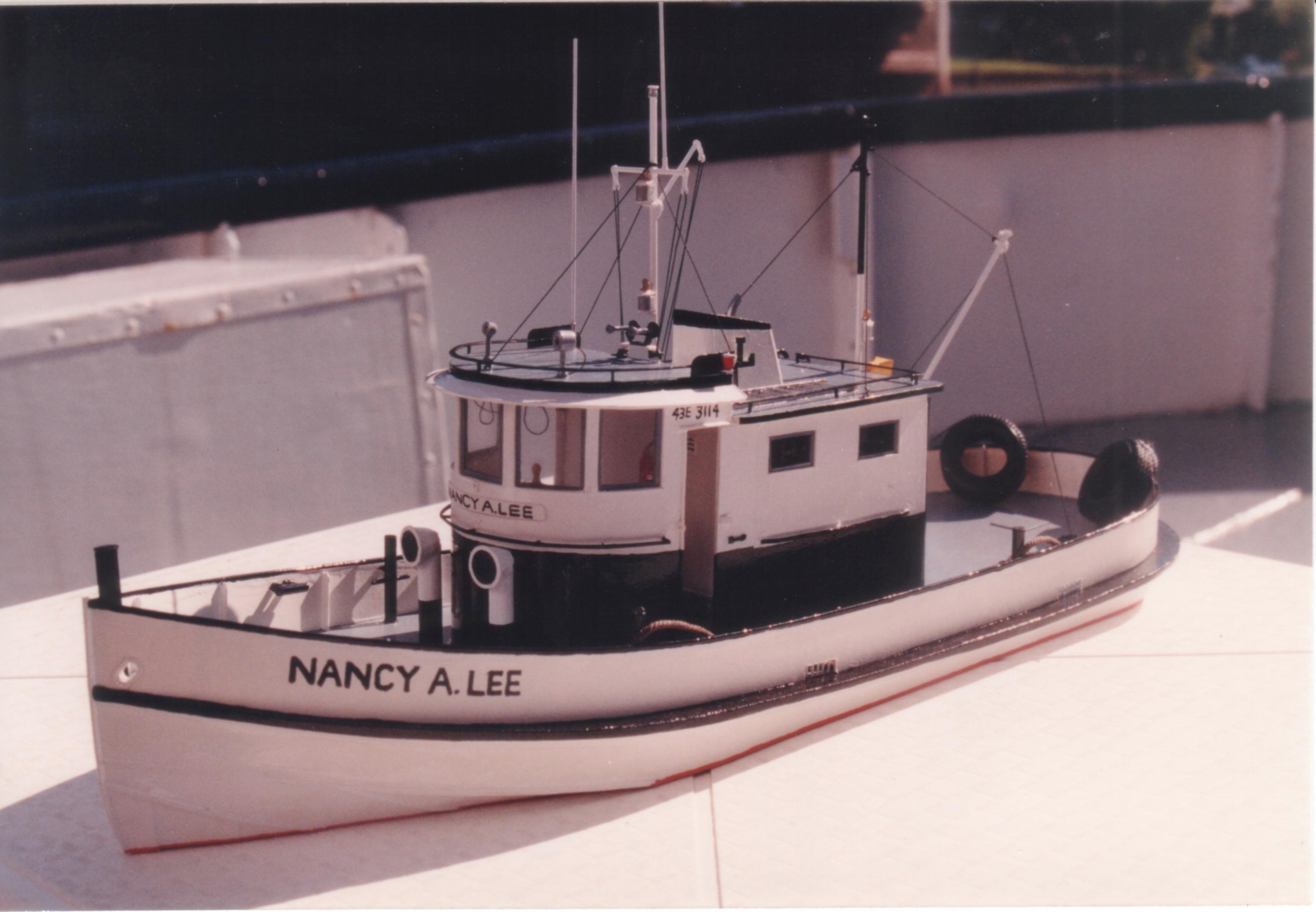

This is a George Lee photo of his Nancy A. Lee model, which I built for him several years ago. It is of bristol board construction. The photo was actually taken aboard the real tug!
1024 pixels wide   SV COLLECTION   600 DPI SCAN
CLICK FOR MODEL PAGE
MODEL PAGE

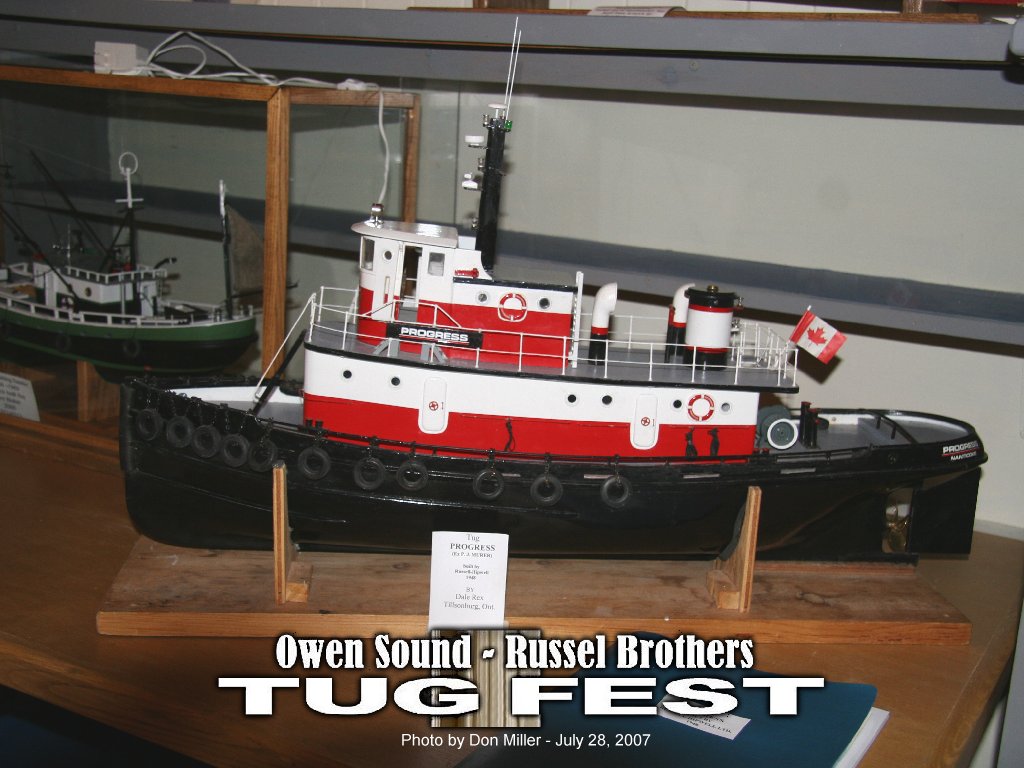

Progress   DALE REX
Tugfest Photo by Don Miller.
1024 pixels wide   DM COLLECTION
CLICK FOR BOAT PAGE
MODEL PAGE

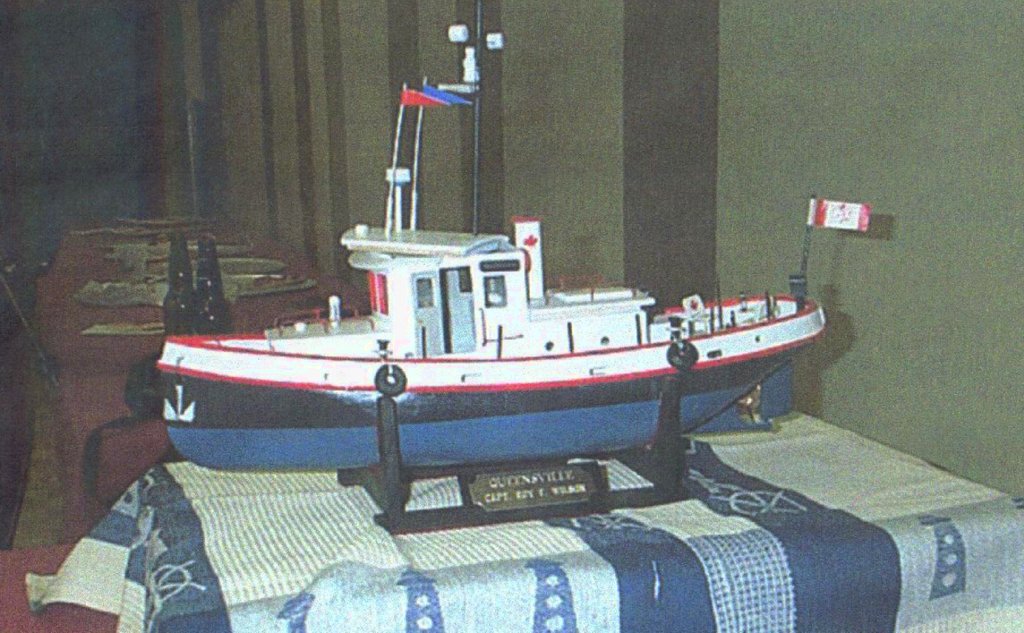

Queensville   LORNE LaHAYE
Built for Queensville Capt. Roy Wilson of the Soo. Tugfest Photo by Don Miller.
1024 pixels wide   DM COLLECTION
CLICK FOR BOAT PAGE
MODEL PAGE
Queensville   LORNE LaHAYE
Built for Queensville Capt. Roy Wilson of the Soo. Tugfest Photo by Dan McKay.
1024 pixels wide   DM COLLECTION
MODEL PAGE
Queensville   LORNE LaHAYE
Capt. Roy Wilson's Queensville modelled by Lorne LaHaye.
600 pixels wide     1024 pixels wide
BOAT PAGE

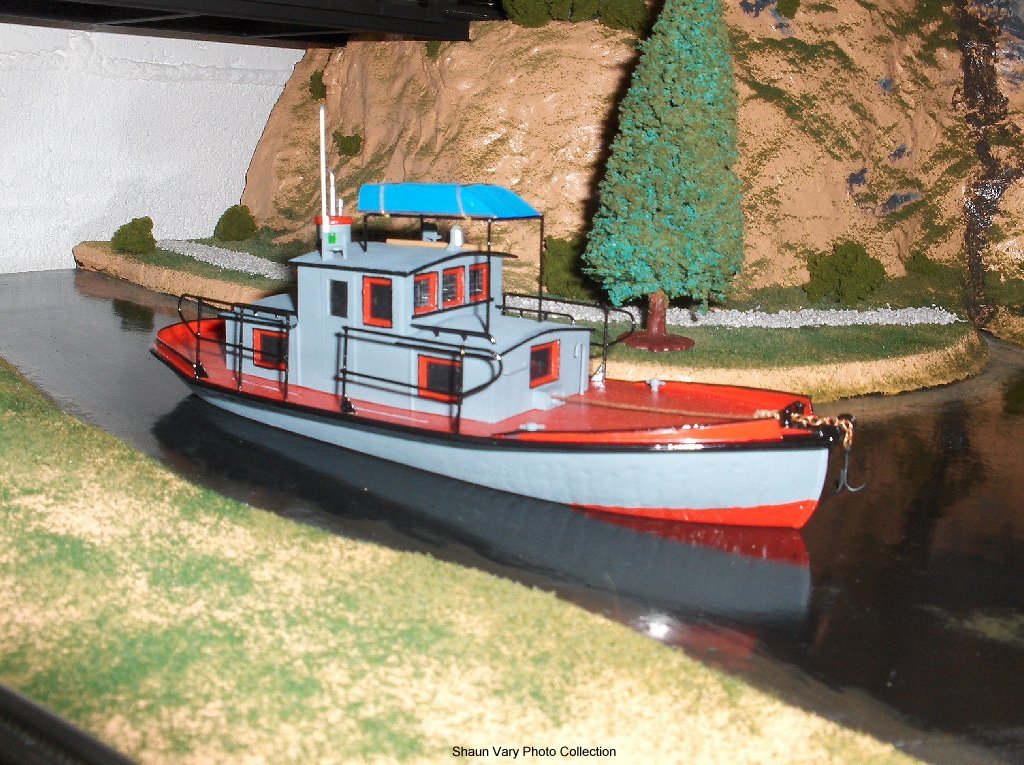

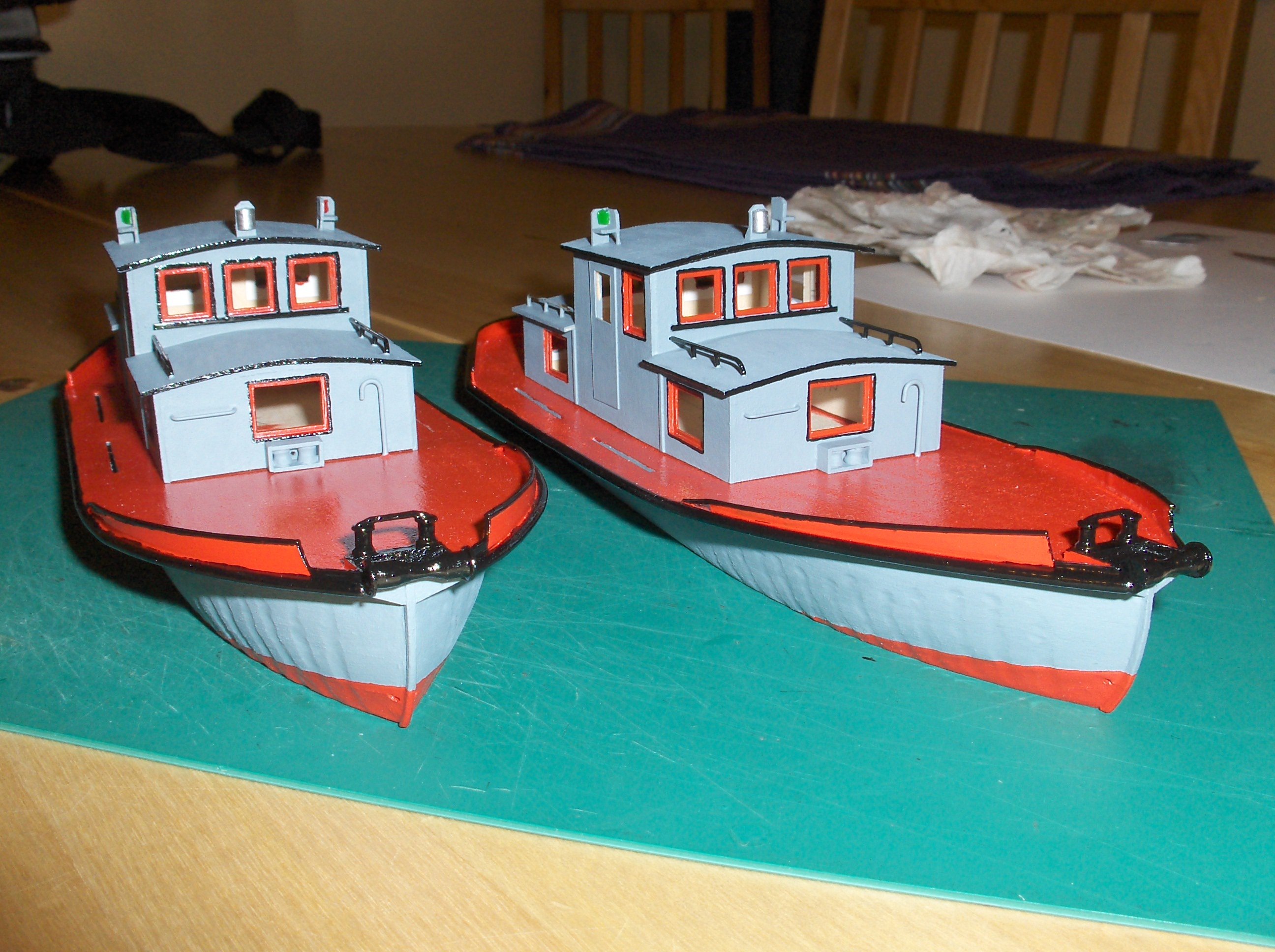

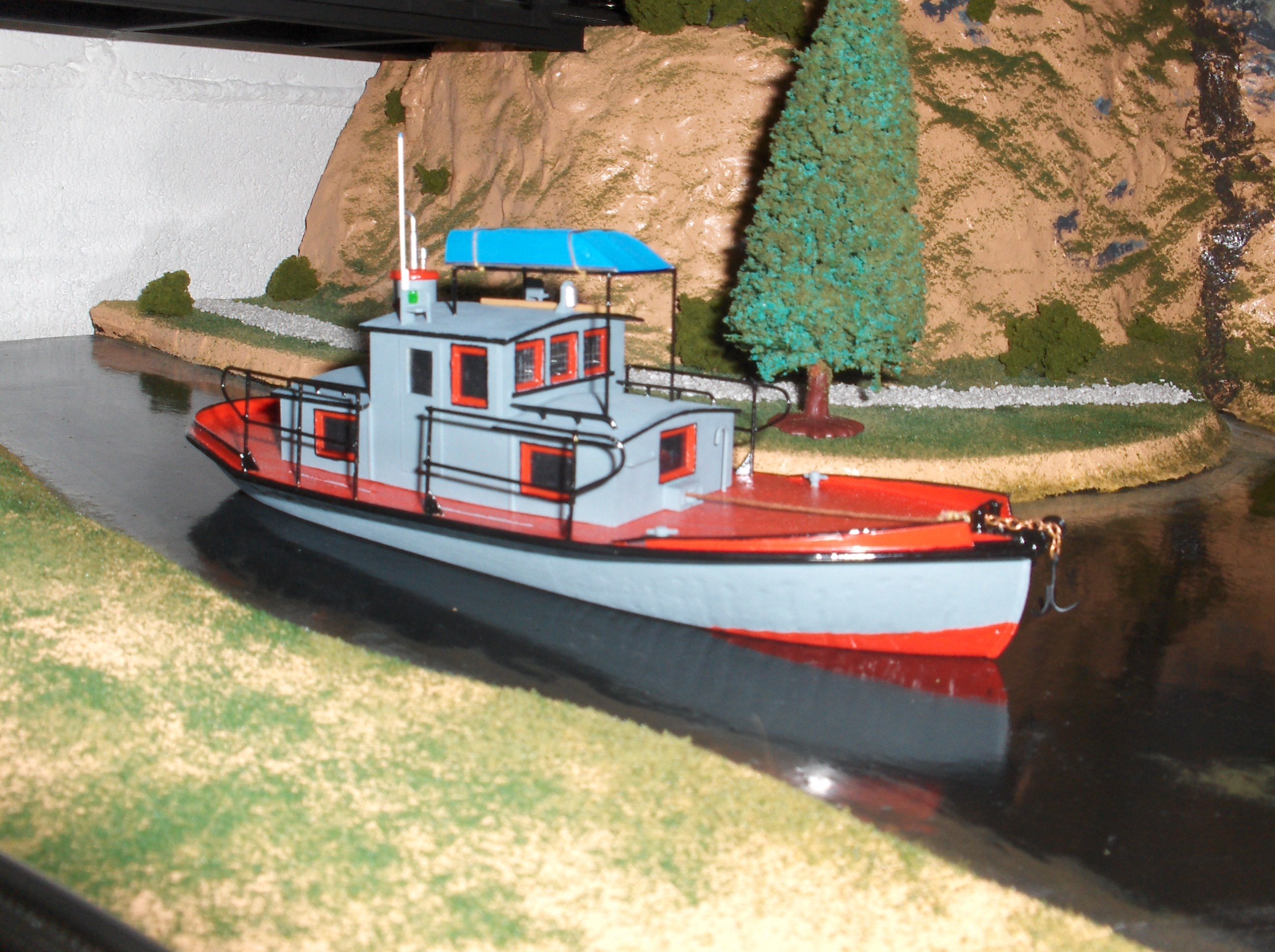

Russel Warpers   SHAUN VARY
Russel Brothers warping tug model I made for Bill Moran's and my (my son's!!) 'O' scale railroads. My son and I are planning to incorporate a logging/lumber mill operation into our train layout. What better way to start than with a model boat!
1024 pixels wide   SV COLLECTION   600 DPI SCAN
CLICK FOR MODEL PAGE
MODEL PAGE
Russel Warpers   SHAUN VARY
Here is a photo of the Russel warpers under construction. They are made of wood, with brass for the railings. They are loosely based on "The Piles", but are otherwise generic.
1024 pixels wide   SV COLLECTION   600 DPI SCAN
CLICK FOR MODEL PAGE
MODEL PAGE

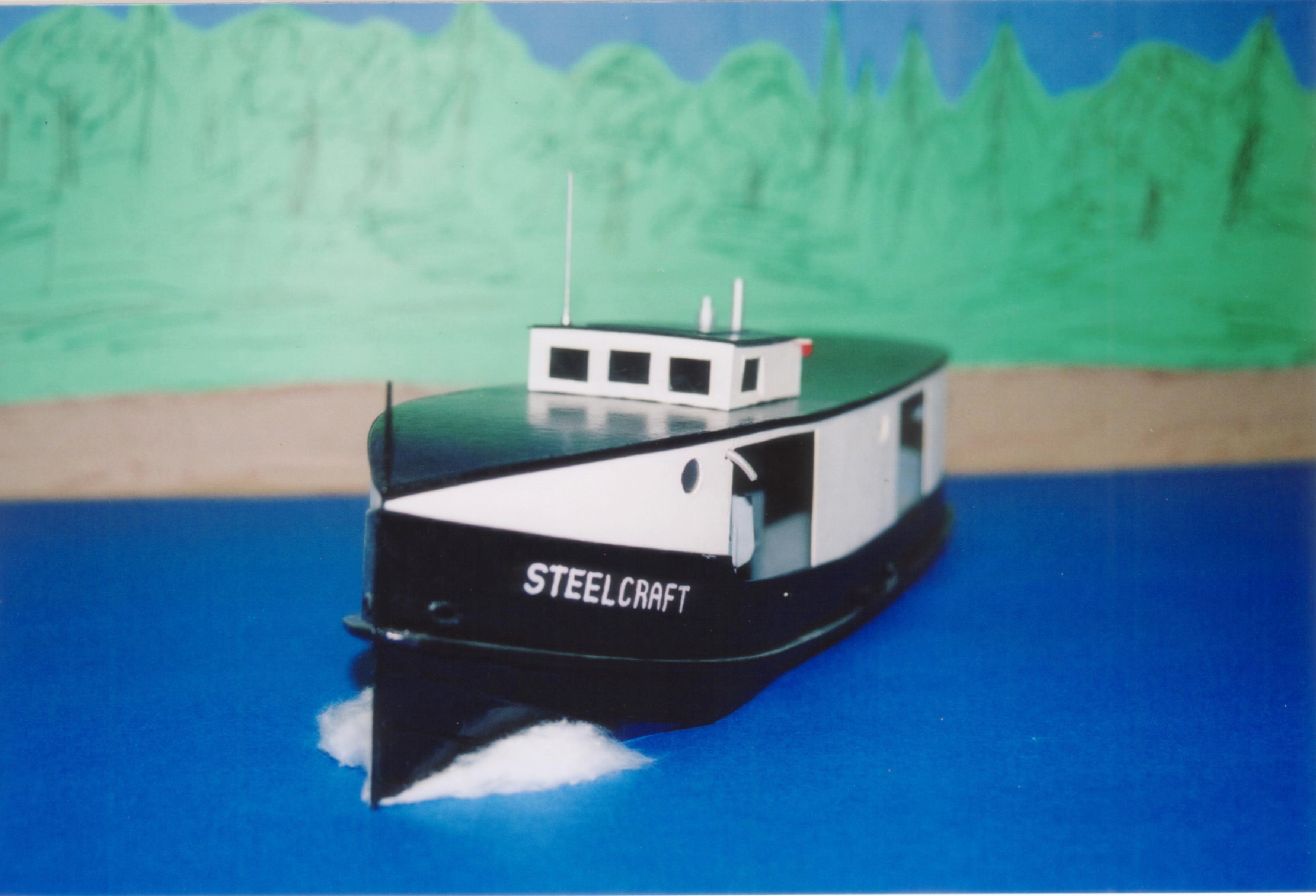

Steelcraft   SHAUN VARY
Here is a model of the Steelcraft that I built several years ago. It is in my own collection. The model is waterline, and mostly constructed of bristol board. I started out at a very young age building model fish tugs out of cigarette packages. I later switched to bristol board, which was much easier. I can no longer purchase the proper grade of bristol board to build these type of models. I have switched to wood, plastic, and other materials as my main medium.
1024 pixels wide   SV COLLECTION   600 DPI SCAN
CLICK FOR MODEL PAGE
MODEL PAGE

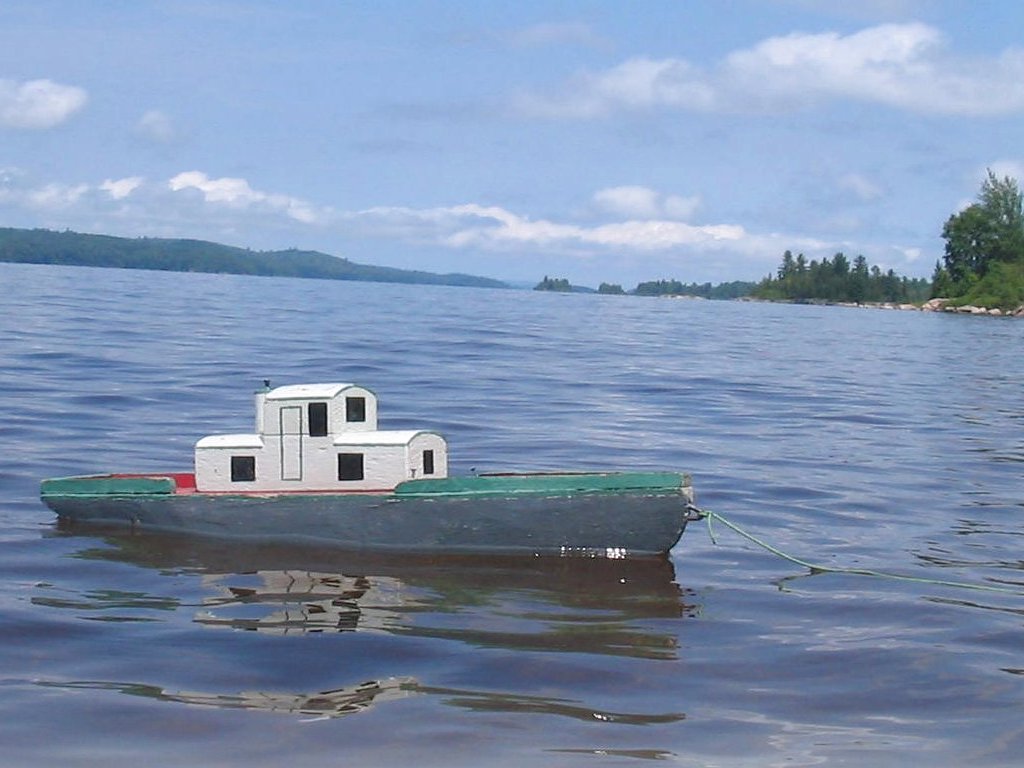

Warping Tug   DOUG GAGNON
Doug's 30 year old original Russel model, made by him as a child.
600 pixels wide   DG COLLECTION   1024 pixels wide
MODEL PAGE
